1/2'' 220V Timer Controlled Automatic Drain Valve For Compressed Air

    Buy cheap 1/2'' 220V Timer Controlled Automatic Drain Valve For Compressed Air from wholesalers

    Buy cheap 1/2'' 220V Timer Controlled Automatic Drain Valve For Compressed Air from wholesalers
    • Buy cheap 1/2'' 220V Timer Controlled Automatic Drain Valve For Compressed Air from wholesalers

    1/2'' 220V Timer Controlled Automatic Drain Valve For Compressed Air

    Ask Lasest Price
    Brand Name : Brando
    Model Number : BADV01
    Certification : CE
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union,Paypal, MoneyGram
    Supply Ability : 300000 sets per month
    Delivery Time : 4-8 days
    • Product Details
    • Company Profile

    1/2'' 220V Timer Controlled Automatic Drain Valve For Compressed Air

    1/2'' 220V Timer Controlled Automatic Drain Valve For Compressed Air


    Timer drains are electrically operated units in which an adjustable timer periodically opens a valve to remove accumulated condensate. Timer drains are basic components used in most compressed air systems because they provide an inexpensive, reliable means of removing condensate without having to manually open drains’ valves. Timer drains are used on filters, air receivers, air dryers, separators, aftercoolers, and other compressed air system components.


    They come equipped with valve and strainer to prevent entry of larger condensate, and a drain for the automatic removal of moisture. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining. The automatic drain valve also eliminates the need for the wasteful practice of bleeding, or leaving cracked open manual drain valves. With adjustable valve open and cycle time settings, all series drain valves can be set for your operating conditions. The valve open time may be set for 0.5 to 10 seconds and the cycle time may be set for 0.5 to 45 minutes.


    Main Dimension of Air Compressor Automatic Drain Valve:

    1/2'' 220V Timer Controlled Automatic Drain Valve For Compressed Air 1/2'' 220V Timer Controlled Automatic Drain Valve For Compressed Air

    Model
    BADV01
    BADV02
    Port Size
    1/8'', 1/4'', 3/8'', 1/2''
    Valve Type
    OPTIMUM
    COMBO
    Operation Type
    2/2 Way, Direct Acting
    Power Connection
    DIN 43650 Form A
    Voltages
    24VDC, 110VAC, 220VAC (50/60Hz)
    Body Material
    Brass, Stainless Steel (For High Pressure)
    Seal Material
    FKM
    Insulation Class
    H
    Protection Class
    IP65
    Timer Cycle Range (ON / OFF)
    0.5 - 10seconds / 0.5 - 45 minutes
    Timer Cycle Indicatin
    Bright LED illumination
    Test Feature
    Yes
    Pressure Range
    0 - 230 PSI
    Medium Temperature
    34 - 131℉

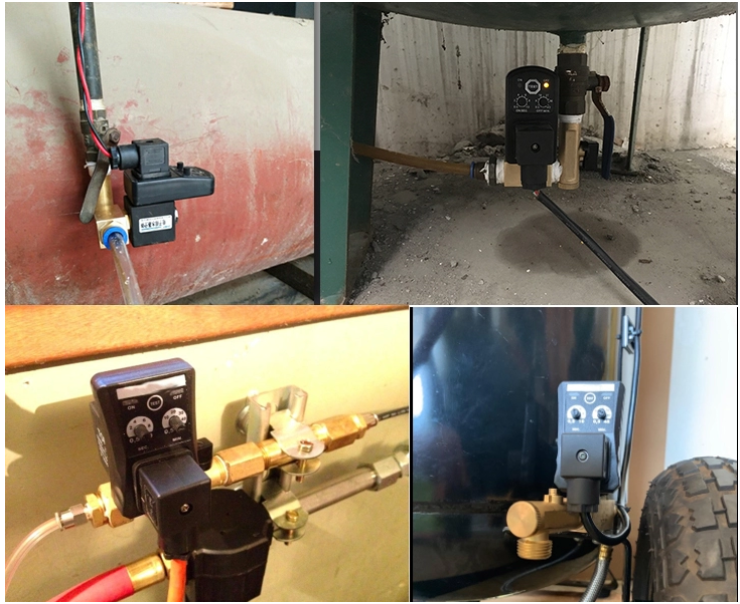

    Application Examples from customer feed back:


    Air Compressor Automatic Drain Valve Spare Parts:

    auto drain valve timerauto drain valve parts solenoid coilauto drain valve parts

    Solenoid Valve Timer Solenoid Valve Coil Solenoid Valve Armature


    Brando Solenoid Valve Factory Production Video:


    More Air Compressor Solenoid Valve for you to choose:


    Focus on your demands, Offer you best solution:


    √ Contact us if some points you have doubt

    √ Contact us if somewhere need to change
    √ Contact us if not the one you are looking for

    √ Contact us if you are doing designing


    Welcome to your any question and inquiry!
