Low Power Control Solenoid Valve Part -200 To 200 Temperature Range

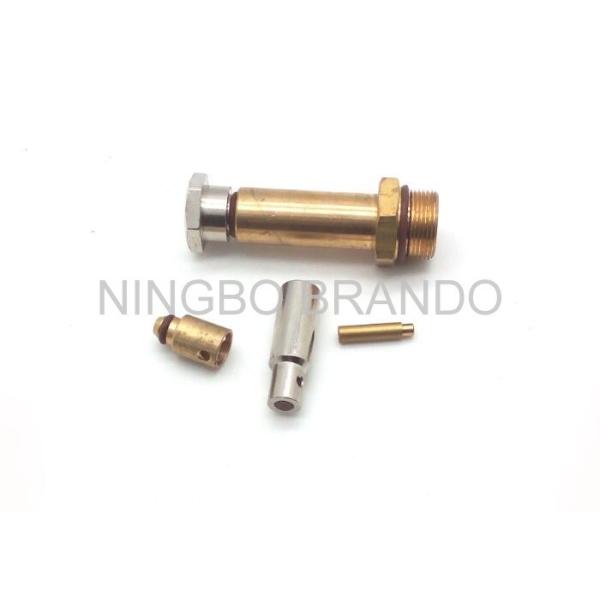

Solenoid Stem
Application for Dust-removing solenoid valve
1.After assembling with solenoid coil and solenoi stem.
2.Dust-removing solenoid valve:The dust collector solenoid valve is
a compressed air switch for the dust removal system of the pulse
bag filter. Controlled by the output signal of the pulse injection
controller, the filter bag is injected one by one and the
resistance of the dust collector is kept within a set range
to clean the dust to ensure the processing capacity and efficiency
of the dust collector
Work principle
The diaphragm divides the pulse solenoid valve into two chambers.
When the compressed air is switched on, the compressed air enters
the back chamber through the throttle hole. At this time, the
pressure of the back chamber will press the diaphragm to close the
output port of the valve, and the pulse solenoid valve is in a
"closed" state. The electric signal of the pulse injection
controller makes the armature of the pulse solenoid valve move, the
vent of the back chamber of the valve opens,then the back chamber
loses pressure rapidly and the diaphragm moves backward, the
compressed air is injected through the outlet of the valve, and the
pulse solenoid valve is in the "open" state. The electric signal of
pulse jet control device vanishes and the armature of pulse
solenoid valve is reset. The outlet of the back chamber is closed,
and the pressure of the back chamber rises to make the diaphragm
close to the valve outlet, and the pulse solenoid valve is in the
"closed" state.
Detail information/demension instruction
1.Brand:BRANDO
2.NO.BAPC214041405
3.Voltage:Both AC/DC
4.Tube OD:14.0mm
5.Tube height:41.4mm
6.Item weight:82g
7.Movable core height:32.3mm
8.Connection type:Groove and male thread
9.Seal material:NBR
NBR:NBR has good resistance to mineral oils, vegetable oils,
benzene/petrol, ordinary diluted acids and alkaline.
10.Depth:30.6mm
11.Temperature:-200 to 200
12.Pressure:Normal
13.Test with three inspectors
We have very strict quality control,each item we manufacuture will
be testd by different aspects.Such as pressure test,temperature
test,corrosion-resistance test,toxic-resistance test,voltage
test,etc
Items can be customized and make OEM if you have the sample and
drawing
Contact us by email is ok,We will reply your email and fox within
24 hours .
Pay attention to
Read the guideness and instruction before using Ensure the correct use of our item |
Never install our item in the dangerous place |
Choose the proper solenoid coil to avoid unnecssary problem and
question |
If cause damage because unproper use ,We cannot accept liability |
Related solenoid stem
Note
If you have some special requirements and requests.Inform us and
give you a best solutin
All the items' specification can be customized
